Kill Switch Kit

It’s time to protect your investment and help with peace of mind when you park your Toyota out of sight.

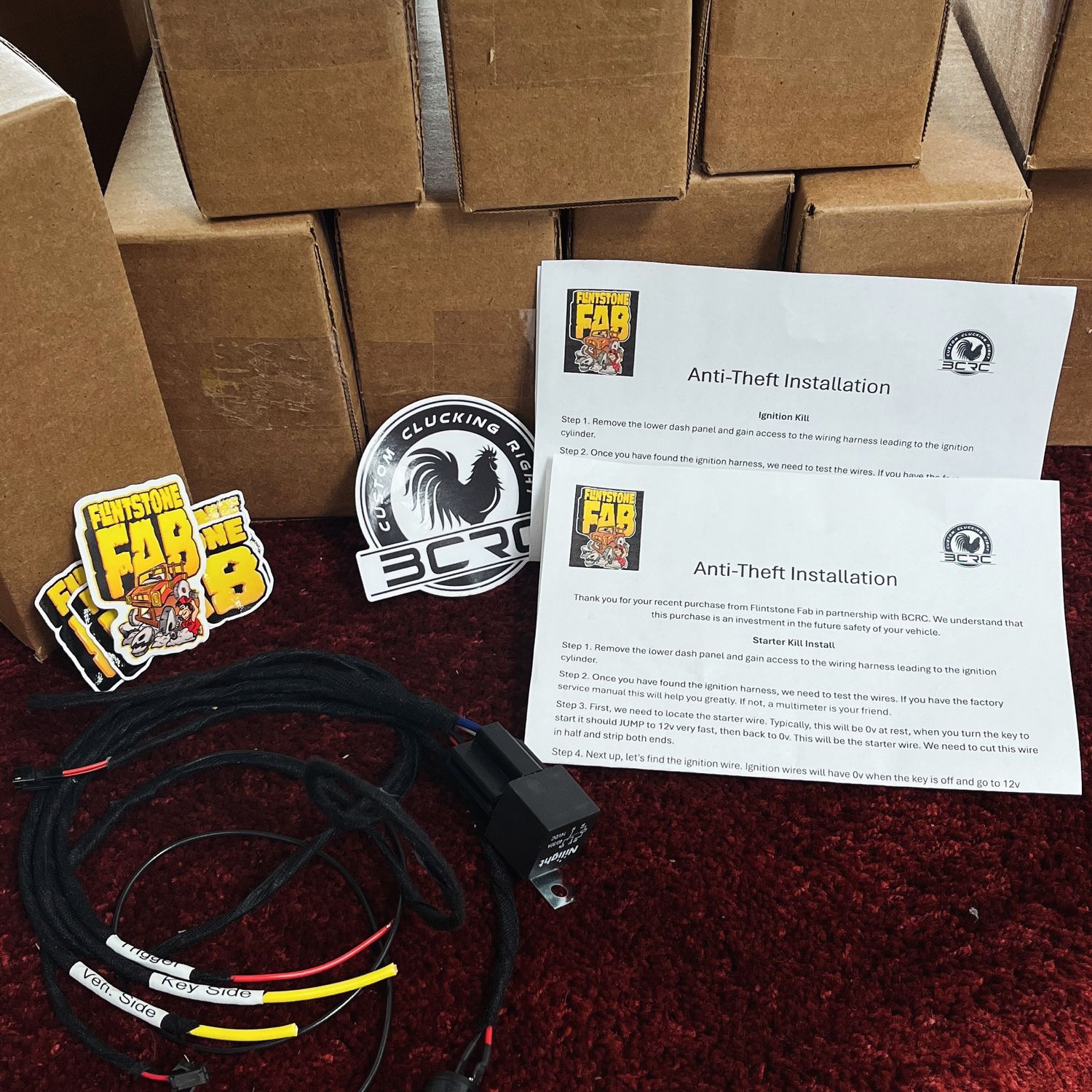

This kit uses a 5-pin bosh-style relay and a small toggle switch that’s used to interrupt your starter circuit. Detailed instructions will be included with every kit, but here are the basics:

The kit has 3 open wires: 2 for the starter trigger and 1 to power the relay.

Two factory wires need to be located.

1: ignition power = 12 volts with the key resting in the on position

2-Starter 12v trigger = 12v with key held on the start position

Your starter trigger wire will be cut, and both ends will be connected to the two open wires on the kit; orientation doesn’t matter.

Your ignition wire will get spliced to the ignition wire on the kit.

Basic stuff It is super simple to install with a multimeter.

The kit will come with a posi tab to splice into the ignition wire and two butt connectors for the guys who don’t want to solder the wires.

This product is made by BCRC exclusively for Flintstone Fab LLC
